TXP-20
£3,195.00
Built for competition and play
NEXT LEVEL
Larger frame and longer range for ages 7-10.
SECURE START
Lanyard, PIN entry, and two-stage activation included.
TUNED PERFORMANCE
Customisable throttle, speed, and power delivery options.
RIDE OPTIONS
Switch setup for seated trail or standing trials.
Electric Performance, Safety, and Control
More power for bigger adventures.
Designed for riders aged 7-10, the TXP-20 offers increased power, more torque, and upgraded geometry for trail exploration and junior trials competition use.
Brushless 1600W 50V motor
OSET 50V motor with encoder delivers smooth torque and responsive power, ideal for confident off-road riding and skill development. Triumph-tuned delivery Throttle mapping balances power and responsiveness for a predictable feel across all four rider modes, whether in trials or trail configuration.
Active Performance Stabilisation (APS)
APS maintains consistent power delivery as battery voltage naturally drops during a ride, sustaining performance across more of the battery’s charge.
Field-Oriented Control (FOC)
Advanced FOC controller and encoder-based motor manage torque smoothly based on throttle input and speed, optimising control and responsiveness across varied terrain.
Three-dial parental control
Parental keypad allows secure adjustment of power (25–100%), throttle response, and top speed-up to 19mph depending on configuration and rider mode.

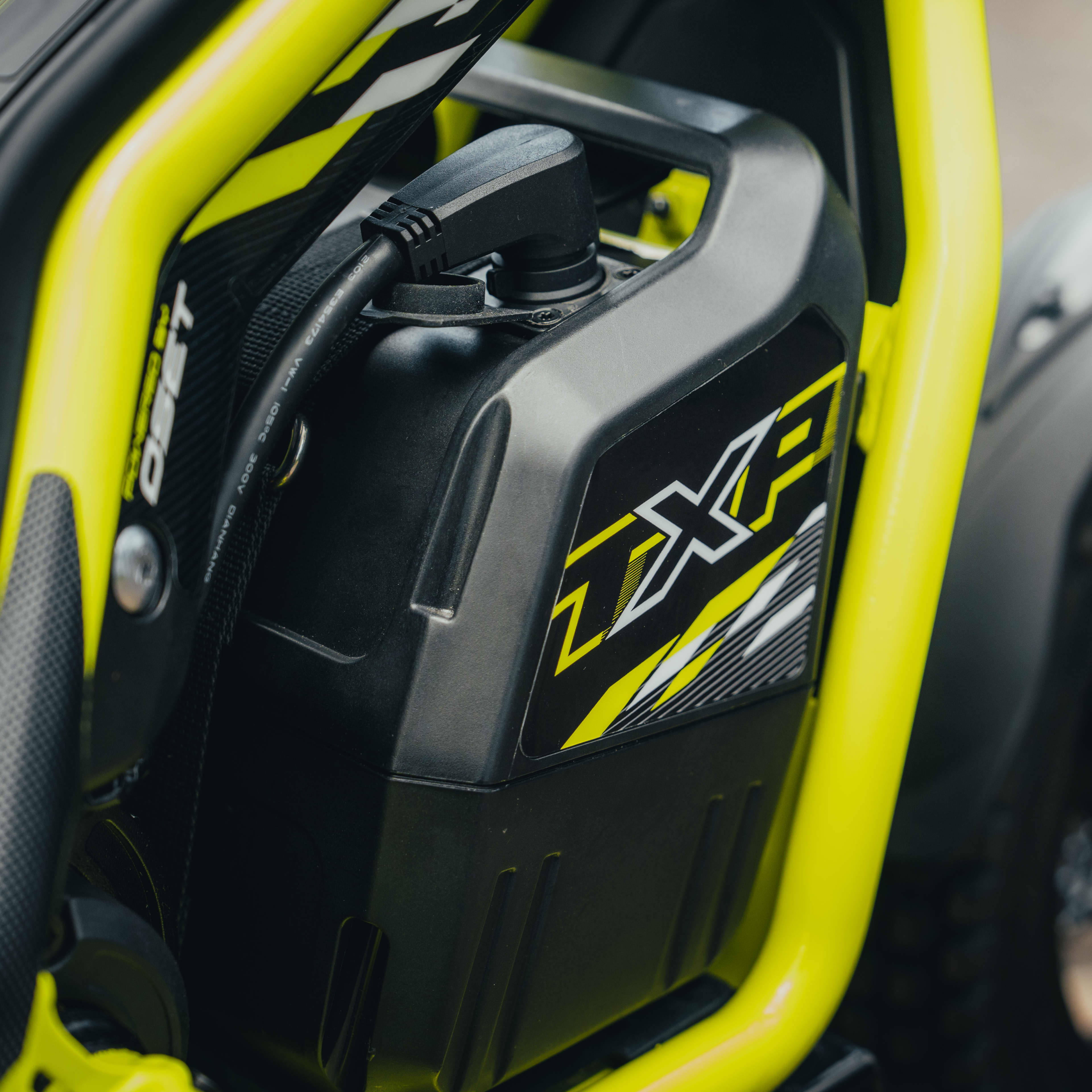

Battery
More capacity for longer, faster rides.
A high-output lithium battery supports the TXP-20’s enhanced power and ride time, while retaining a sealed, removable design with fast-release convenience.
Smart control, built-in confidence.
Advanced rider-focused software works behind the scenes to smooth power, protect components, and give riders a stable, responsive platform to grow their skills.
APS power control
Keeps acceleration controlled and predictable during off-road climbs, descents, and tight turns, especially in low-grip conditions or sudden throttle inputs.
IP67-rated aluminium controller housing
Die-cast casing with external cooling fins protects control systems from water, dust, and heat-related damage during long rides.
Secure 2-stage start sequence
Prevents accidental activation with a double-safety power-on procedure to keep riders, parents, and bystanders protected.
FOC-enabled controller
Advanced FOC controller and encoder-based motor manage torque smoothly based on throttle input and speed, optimising control and responsiveness across varied terrain.

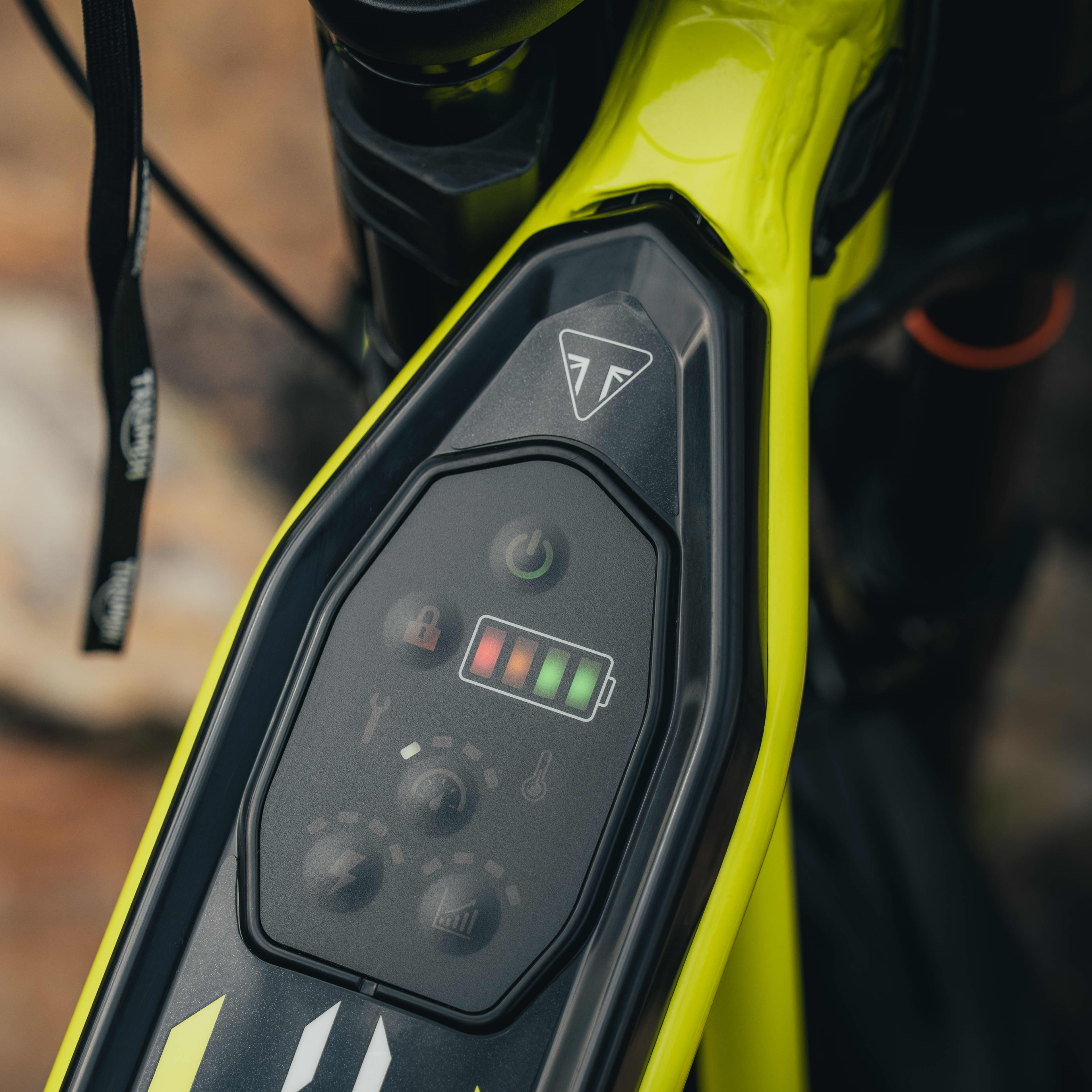

Integrated diagnostic display
Parental keypad shows system fault codes and service alerts for quick troubleshooting and confidence before every ride.
Built-in protection for confident progression.
All TXP models are equipped with layered safety systems to give riders a secure platform to progress while letting parents stay in full control.
Magnetic safety lanyard
Interrupts motor power instantly if the rider becomes separated from the bike, helping prevent accidents.
PIN-locked parental controls
Speed, power, and throttle settings are secured by a parent-assigned PIN code to prevent accidental or unauthorised changes.
Controlled two-stage startup
The two-step power-on process ensures the TXP-20 cannot be accidentally started by children or during transport.
Waterproof and dustproof electronics
All controller, battery, and wiring elements are fully IP67-rated for safe, consistent function in wet or dirty environments.

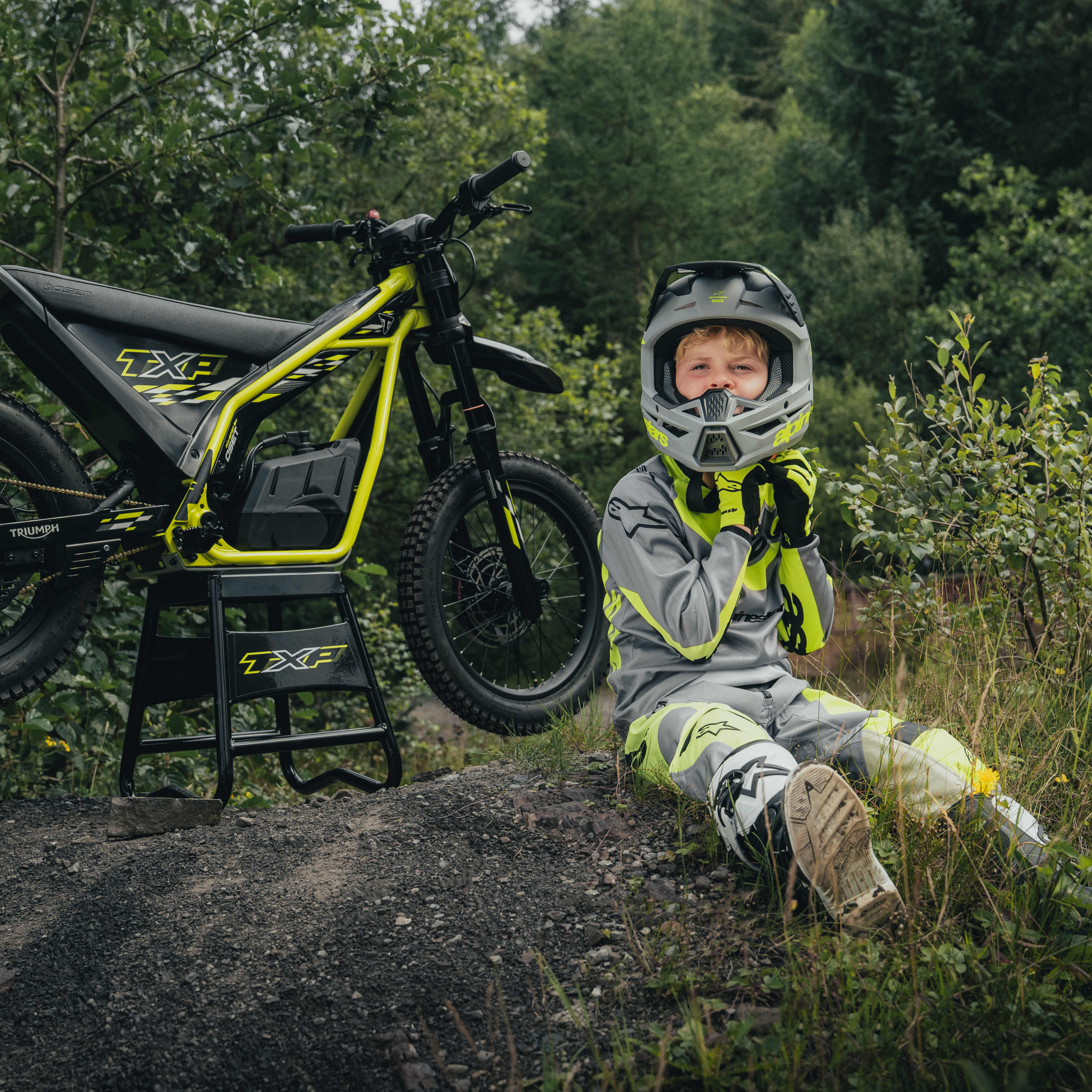

Bigger platform, same Triumph Powered by OSET DNA.
Built for growing riders and more demanding terrain, the TXP-20 delivers a more capable ride with modular versatility and bold, race-inspired Triumph styling.
Modular trials and trail setup
Switch between standing and seated configurations by fitting or removing the seat and front mudguard, tool-free in under a minute.
Triumph Performance yellow styling
Bold yellow, black and graphite livery reflects Triumph’s premium off-road identity and matches the full-size range.
Lightweight steel chassis
Robust steel frame delivers strength and agility, with a 1085mm wheelbase and 42.2kg (Xplore) or 40.7kg (Trials) weight for confident, responsive handling as skills grow.
Comfortable fit for confident control.
All rider contact points are proportioned for ages 7–10, with control comfort and ergonomic design that supports longer, faster, and more technical riding.
Two seat height options
525mm (Trials) or 700mm (Xplore) seat heights support confident footing and adaptability for different riding styles and abilities.
Scaled contact points
Grips, controls, and levers are all sized for mid-child range riders to ensure responsive, comfortable input and braking.
Minimal cockpit layout
Uncluttered handlebar space supports a focus on riding, body position, and bike feel, without unnecessary distractions.
Stable geometry, ready for more.
The TXP-20’s geometry, suspension, and brakes are designed for control, capability, and comfort as riders move into faster, more demanding environments.
Purpose-built geometry
1085mm wheelbase, 255mm ground clearance, and youth-focused layout deliver a stable, agile feel across trails and trials obstacles.
Adjustable suspension
125mm air-sprung front fork and 120mm rear shock with rebound, and volume adjustment up front, and rebound and volume adjustment at the rear, ideal for rider growth and varied terrain.
Hydraulic disc brakes
Front and rear 180mm dual-piston hydraulic discs with short-reach levers offer smooth, progressive stopping with minimal hand pressure.
Tech specs
Type
Electric Motor 1200w 50v brushless direct current, with encoder position sensor, maximum speed 22 mph
Battery
Sealed 50V, 20AH Lithium-ion battery pack with LED status indicator
Controller
50V 1200W BLDC Sine-Wave field orientated controller IP66 Rated, inline relay & fuse
Drive system
11t front sprocket, 86t rear sprocket. #219 chain
Maximum speed
20 mi/h
Frame
Tubular frame, steel, self-extracting swingarm axles, bash guard
Swingarm
Steel fabrication, integrated slide tensioner
Front suspension
Air spring fork, rebound adjustment, 125 mm wheel travel
Rear suspension
Monoshock air spring, rebound adjustment, 120 mm wheel travel
Front brakes
180 mm front rotor, hydraulic 2-piston disc brakes, ball ended levers with reach adjustment
Rear brakes
180 mm solid rear rotor, hydraulic 2-piston disc brakes, ball ended levers with reach adjustment, with guard
Front tyre
20 x 2.50 in, trials pattern
Rear tyre
14 x 3.25 in, trials pattern motorcycle construction
Length
1560 mm
Width
660 mm
Height
970 mm
Seat height
700 mm
Seat height range
700 mm ± 10 mm (525 mm with included seat insert fitted, see product images).
Wheel base
1085 mm
Net weight
40.7 kg
Ground clearance
255 mm
Handlebar height
930 mm
Footpeg height
305 mm
Front rim
20 x 1.60 in, aluminium
Rear rim
20 x 1.60 in, aluminium
Throttle type
Dual sensing elecronic throttle
Ride / limit modes
Power limit, Speed limit, Throttle response
PIN lock
true
Status display indicators
Battery SOC, Fault codes, Thermal warning
Cut-out switch type
Magnetic kill switch with lanyard
Charger type
external
Charge connector
Twist to release type
Charge time 0–100% (min)
167
Minimum rider age (years)
7
Maximum rider weight
60.5
In action - TXP-20 - Powered by OSET
Explore
_TRAIL_View_Right_hyilso?_a=BAVMn6ID0)
_TRAIL_View_Right_ctk5og?_a=BAVMn6ID0)
Legal and safety disclaimer
Essential safety information for riders and guardians
Triumph TXP motorcycles are electric off-road vehicles. They are not road-legal and must only be used on private land or in designated off-road areas, with appropriate permission.
- Adult supervision is always required while the motorcycle is in use.
- The parents/guardians of a rider below the age of 18 are directly responsible to ensure it is safe for the rider to operate the motorcycle.
- Riders must wear a helmet, gloves, sturdy boots, and appropriate protective clothing. Always wear approved goggles to help vision and to protect your eyes.
- Each TXP model is designed for a specific age range and maximum rider weight. Do not exceed the stated guidance.
- These motorcycles are intended for use by one rider only. Do not carry passengers.
- Riding this TXP motorcycle at night, when it is dark, may risk a collision with close vicinity objects such as vehicles, property or hidden obstacles.
- The TXP’s parental controls must be configured before each ride. Only adults should adjust speed, power, or throttle settings.
- Use only the supplied battery charger. Never use any other charger.
- Use the supplied battery charger in a dry, ventilated indoor area. Do not charge unattended or overnight.
- Do not jet-wash or submerge any part of the bike. Clean with a damp cloth and inspect components regularly.
- Do not dismantle or modify electrical components. Servicing should only be carried out by trained technicians.
- TXP motorcycles are classified as recreational off-road vehicles and are not subject to highway certification.
- To ensure a long, safe, and trouble-free life for your motorcycle, maintenance should only be carried out by a competent person with the specialist knowledge and technical understanding of closed-course competition motorcycles, such as an authorised Triumph dealer.
Important:
Failure to follow these safety instructions will void the manufacturer warranty and may result in damage or serious injury or death.
Only Use supplied Triumph TXP charger
Connect the Triumph TXP battery charger to the bike before mains power; reverse when finishing. Using any other battery charger voids the warranty and risks an electric shock or a fire.
Charging time & LED indicators
Charger LED shows RED at startup, YELLOW while charging, and GREEN when fully charged.
Charge before first ride & after every session
Charge for 5–7 hours initially and after each ride to help balance battery cells.
Store half-charged & maintain monthly
For storage longer than a month, charge to 30–50%, store in cool, dry place, and top up every 60 days.
Indoor, ventilated area only
Charge indoors, away from water - dryer environment recommended.
Battery diagnostics & services
To remove the battery, use the single-twist connector and lift with the integrated carry handle. For diagnostics, book servicing with an authorised dealer via the on-board diagnostic port.
